CanadianSolar 335W High Density 60 Cell Mono

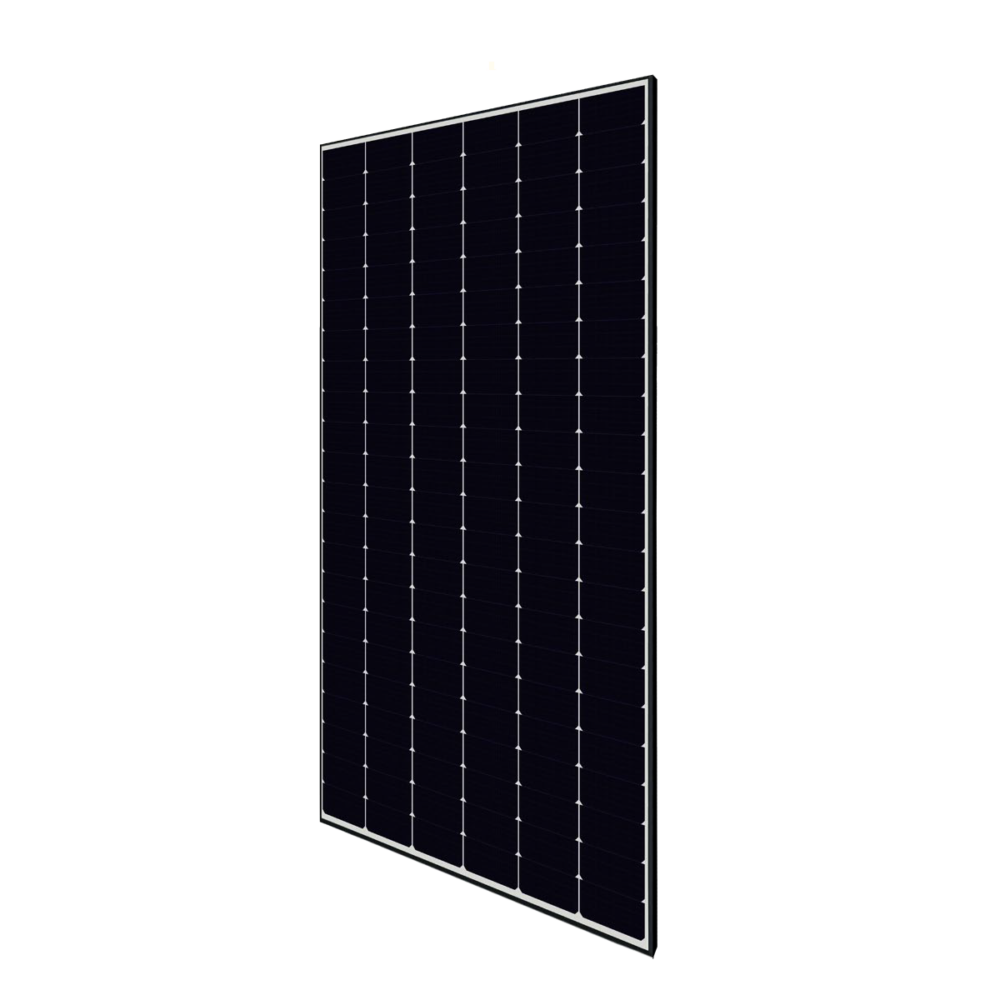

HiDM CS1H-335MS 335W Solar Panel
Features
The 335 watt CS1H-335MS solar panel features state-of-the-art High Density Mono PERC solar cells. This robust and reliable solar panel is rated for up to a 5400 Pa snow load and a wind load of up to 2400 Pa.
With Canadian Solar’s innovative shingled module and Mono-PERC cell technology they can now offer small format high density modules of very high-efficiency. HiDM with its enhanced aesthetics and IP granted module design is the ideal solution for residential rooftop installations. Through maximizing the light absorption area and removing the loss of ribbon resistance, the module efficiency of the CS1H-335MS acheives an impressive 19.86%.
Ensured by over 15 years of experience in module manufacturing, the CS1H-335MS solar panel features a well-engineered module design, stringent BOM quality testing, an automated manufacturing process and 100% EL testing.
- Reliable & efficient HiDM Mono PERC solar cells
- Better shading tolerance
- Lower internal current, lower hot spot temperature
- PV wire w/ T4 (MC4 comparable) connectors
- Reassuring power tolerance of +5W
- 5400 Pa snow load rating
- 2400 Pa wind load rating
HiDM CS1H Mono PERC solar panels are ideal for:
- On-grid residential rooftops
- On-grid residential ground mount solar systems
- Small commercial rooftops
- Solar power stations, solar carports
- Other on-grid applications
HiDM Solar Panel Certifications
Management System Certificates
- ISO 9001:2015 / Quality Management System
- ISO 14001:2015 / Standards for environmental management system
- OHSAS 18001:2007 / International standards for occupational health & safety
Product Certificates
EC 61215 / IEC 61730: VDE / CE / CEC AU
UL 1703 / IEC 61215 performance: CEC listed (US) / FSEC (US Florida)
UL 1703: CSA / IEC61701 ED2: VDE / IEC62716: VDE
Canadian Solar CS1H-335MS Solar Panel Warranty
10 Year
Product warranty on materials and workmanship
25 Year
Linear power output warranty
Specifications
| HiDM CS1H MONO PERC
|
|
| CSI Model Number | CS1H-335MS |
| STC Rating | 335.0 Watts |
| PTC Rating | 312.8 |
| Efficiency | 19.86% |
| Open Circuit Voltage (Voc) | 43.6 V |
| Short Circuit Current (Isc) | 9.73 A |
| Frame Color | Black |
| Origin | Korea / USA |
| Power Tolerance | 0 / +5 Watts |
| Weight (lbs) | 42.3 |
| Length (in) | 66.9 |
| Width (in) | 39.1 |
| Height (in) | 1.38 |
